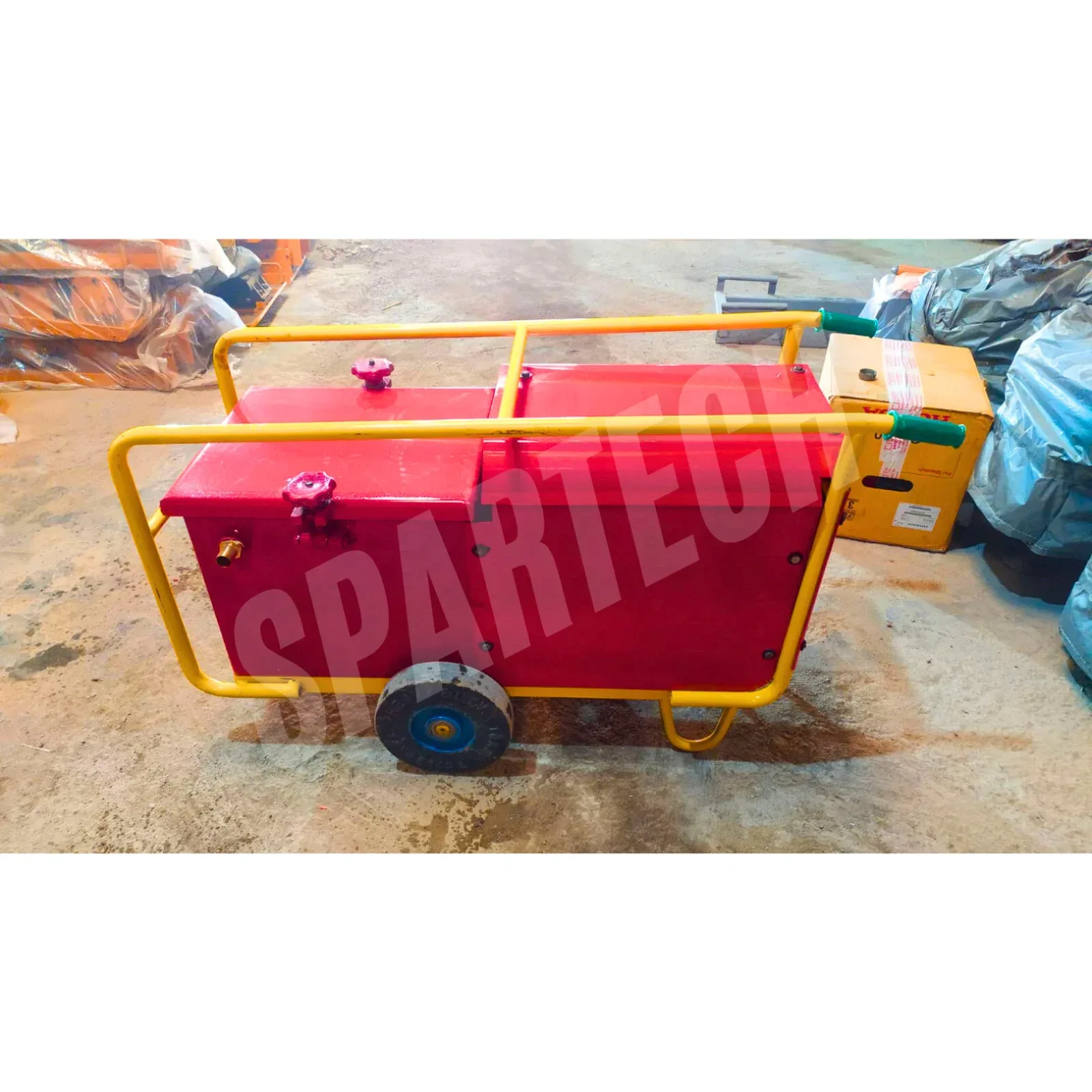

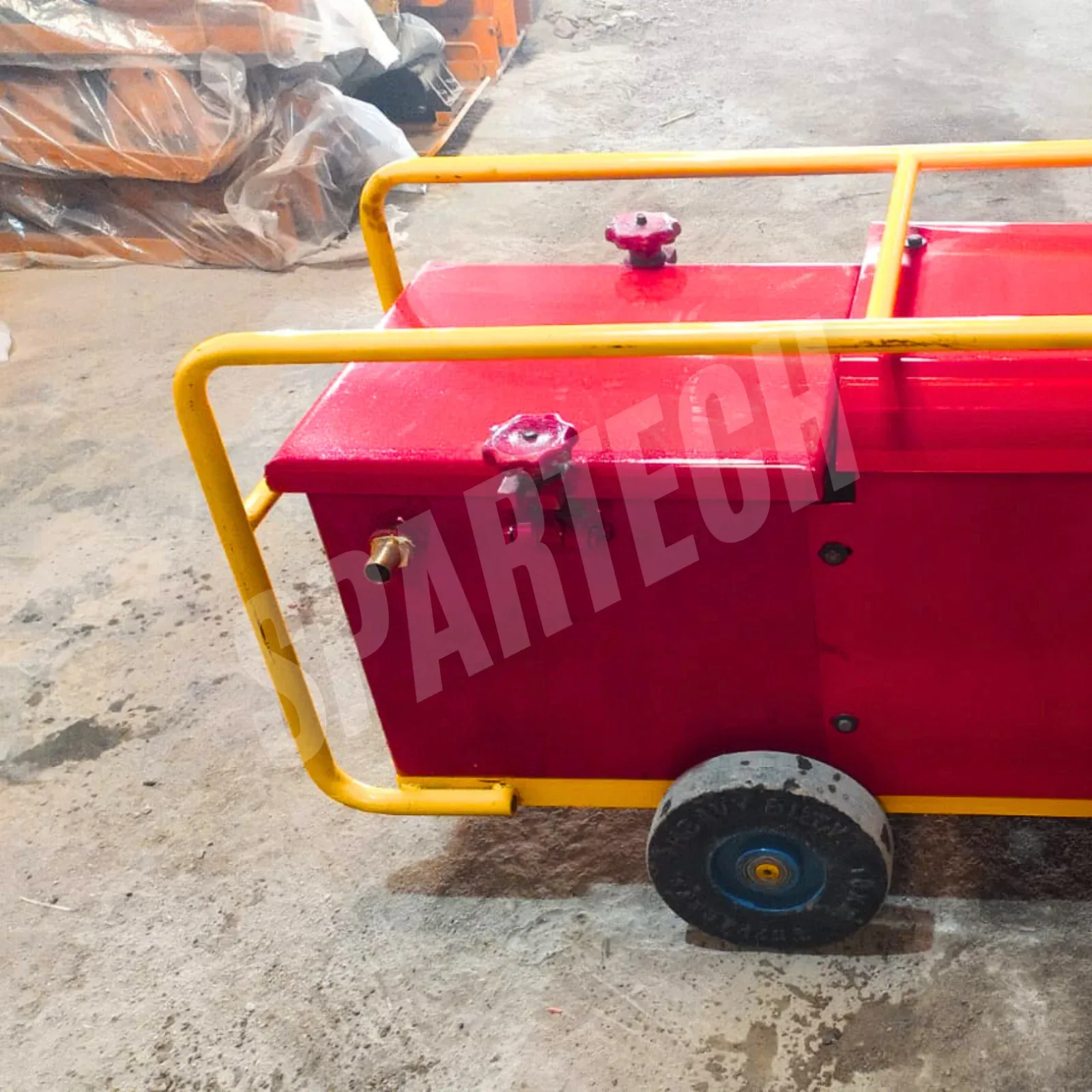

SPARTECH Vacuum Dewatering Pump Complete Set – Model SPT/VP-24

The SPARTECH SPT/VP-24 Vacuum Dewatering Pump is an advanced concrete vacuum dewatering solution engineered for high-performance flooring applications. Designed for construction professionals, industrial flooring contractors, and infrastructure projects, this system efficiently removes excess water from freshly laid concrete, improving its strength, wear resistance, and surface finish.

Mounted on a heavy-duty transportation trolley, the vacuum pump is easy to move around construction sites while delivering reliable performance. Its powerful 7.5 HP SPARTECH electric motor generates continuous vacuum pressure, allowing up to 24 square meters of concrete to be dewatered in a single operation using one complete mat set.

The complete package includes the vacuum pump unit, filter mat, top mat, and a 15-meter suction pipe, making it a ready-to-use solution for professional concrete flooring projects.

Key Features

• Dewaters up to 24 sq. meters in one operation
• Powerful 7.5 HP SPARTECH electric motor
• Heavy-duty continuous discharge vacuum pump
• Mounted on a durable transportation trolley
• Produces stronger and denser concrete surfaces
• Improves abrasion resistance and floor durability
• Reduces drying time
• Easy setup and operation
• Complete ready-to-use system
• Suitable for large industrial flooring projects

Benefits

• Removes excess water from fresh concrete
• Increases concrete density
• Improves compressive strength
• Reduces shrinkage cracks
• Provides a smoother surface finish
• Enhances abrasion resistance
• Extends floor life
• Accelerates project completion
• Low maintenance
• Reliable long-term performance

How It Works

The SPARTECH Vacuum Dewatering System uses vacuum pressure to extract excess water and trapped air from freshly poured concrete. A filter mat and top mat are placed over the concrete surface, and the vacuum pump draws out surplus water through the suction pipe. This process increases concrete density, improves strength, and creates a smoother, more durable finish.

Operating Instructions

1. Level the freshly poured concrete.
2. Place the filter mat over the concrete surface.
3. Position the top mat correctly.
4. Connect the suction pipe to the vacuum pump.
5. Switch on the 7.5 HP motor.
6. Allow the vacuum pump to remove excess water.
7. Once dewatering is complete, remove the mats carefully.
8. Proceed with finishing and power trowelling.

Safety Instructions

• Operate only with a proper three-phase power supply.
• Ensure all electrical connections are secure before use.
• Do not operate the pump without the filter and top mats.
• Wear appropriate PPE during operation.
• Keep the work area clean and free of obstructions.
• Disconnect the power before maintenance.
• Inspect hoses and cables before every use.

Maintenance

• Clean the filter mat after each use.
• Flush and clean the suction pipe regularly.
• Inspect electrical cables for damage.
• Check motor mounting bolts periodically.
• Lubricate moving parts as recommended.
• Store mats in a dry, clean location.
• Service the pump at regular intervals.

Why Choose SPARTECH?

• High-quality industrial construction equipment
• Powerful and efficient performance
• Durable components for long service life
• Easy transportation and operation
• Trusted by construction professionals
• Reliable after-sales support
• Wide service network across India

Package Contents

• 1 × SPARTECH Vacuum Dewatering Pump (SPT/VP-24)
• 1 × Filter Mat Set (4 × 1 Meter)
• 1 × Top Mat (4.5 × 5 Meter)
• 1 × 15 Meter Suction Pipe
• User Manual
