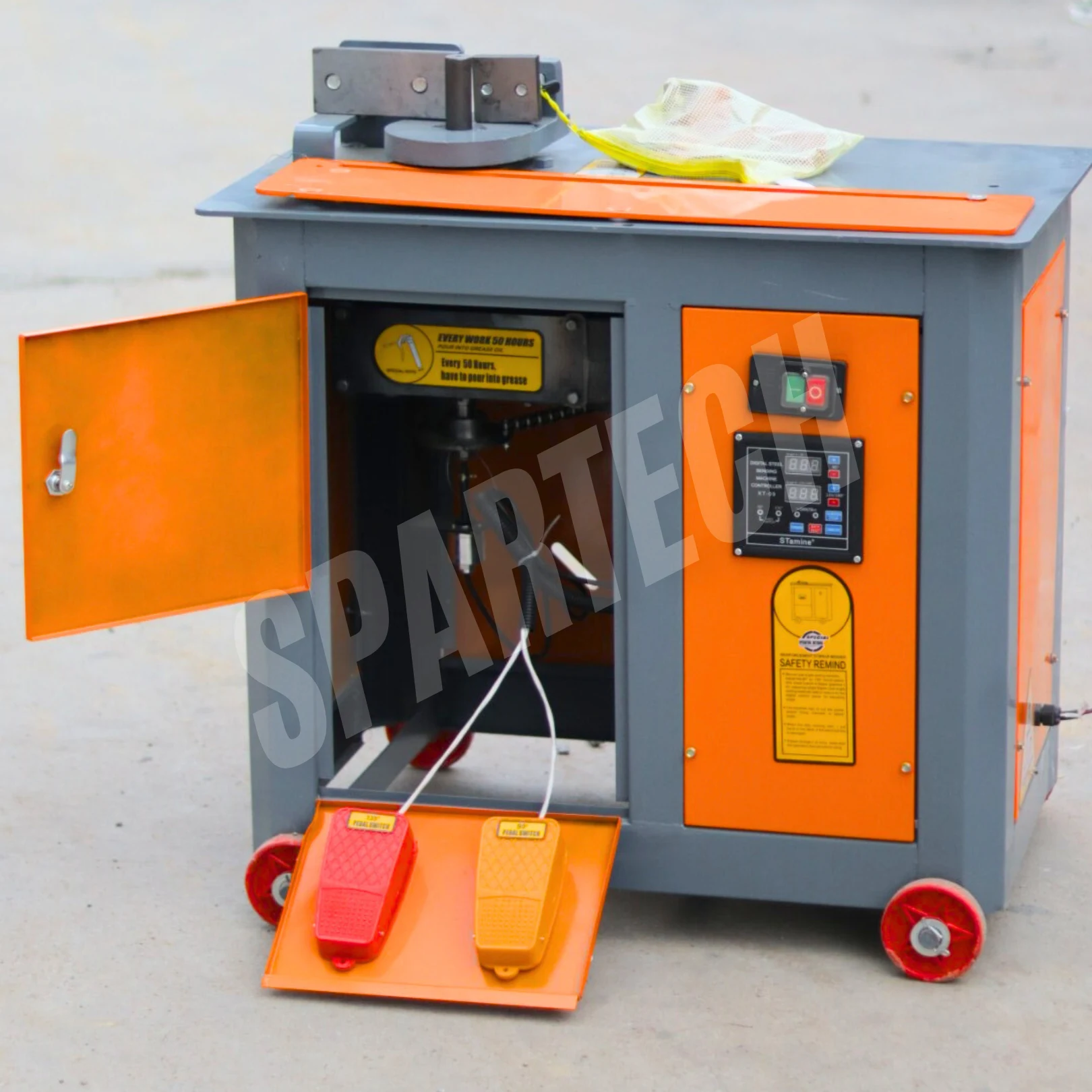

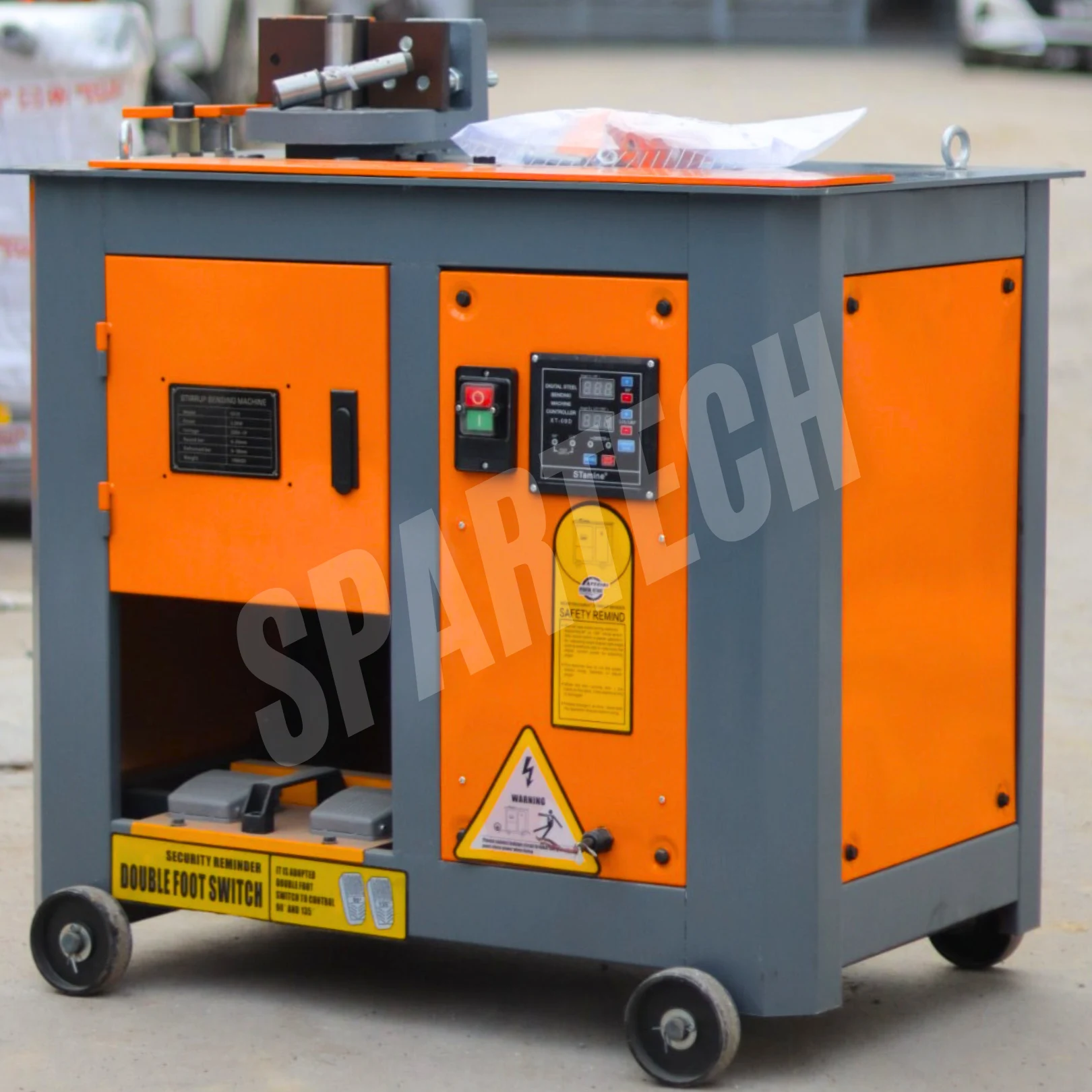

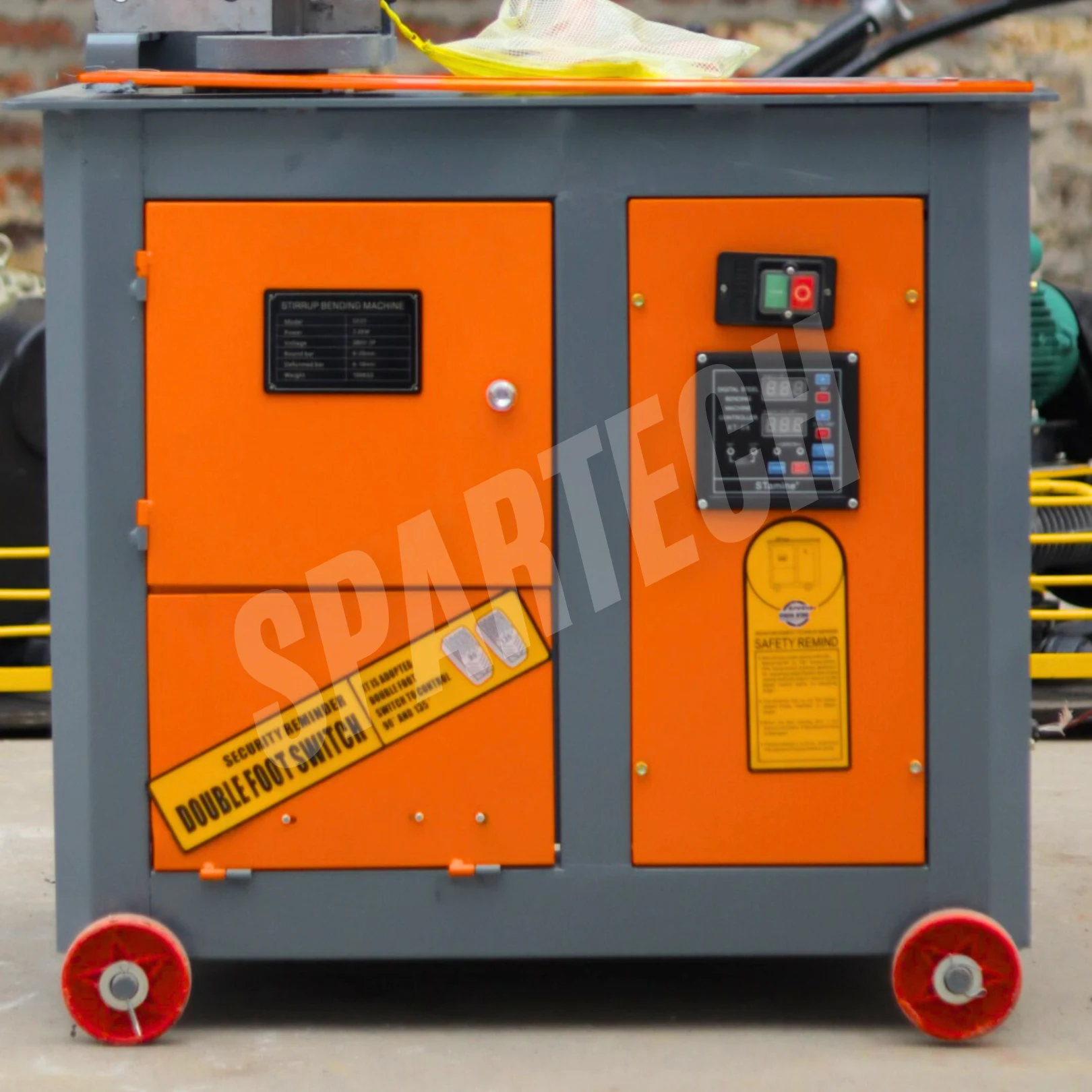

Ring Making Machine (Single Phase)

☆☆☆☆☆ 0.0 · 0 reviews

₹27999.00 ~~₹32085.00~~ 13% OFF

SKU: GF20/SP Category: Machinery

Product Name	Stirrup Bending Machine (Single Phase)
Model	GF20 / SP
Product Type	Stirrup Bending Machine
Motor Type	Single Phase Electric Motor
Motor Power	2.2 kW
Power Source	Electric
Voltage	220V
Bending Capacity	6 – 20 mm
Production Speed	28 pcs/min
Bending Accuracy	High precision (repeatable output)
Operation Type	Semi-Automatic
Weight	90 kg
Application	RCC & Steel Bar Fabrication
Usage Type	Construction Site / Fabrication Yard

● In Stock

Description

Built for Fast and Accurate Rebar Processing

The Spartech GF20 Automatic Stirrup Bending Machine is a professional-grade steel bar bending solution designed for contractors, fabrication workshops, infrastructure projects, and construction companies. Engineered for precision and productivity, the machine enables operators to create accurate stirrups, rings, hooks, and custom reinforcement shapes with minimal effort.

Featuring an automatic reverse mechanism, dual foot pedal control, and adjustable angle settings, the GF20 delivers consistent bending quality while significantly reducing labor requirements and production time.

Automatic Stirrup Production

The machine automatically completes the bending cycle and returns to its starting position, enabling faster and more efficient production.

Adjustable Bending Angles

The GF20 allows operators to set bending angles from 0° to 360°, making it suitable for various reinforcement designs.

Dual Foot Pedal Control

Two foot switches allow quick selection of commonly used bending angles such as 90° and 135°, improving productivity during repetitive operations.

Heavy-Duty Industrial Design

Manufactured using robust steel construction and industrial-grade components, ensuring long service life in demanding site conditions.

User-Friendly Operation

The machine can be operated by a single person, reducing labor costs and simplifying daily operations.

High Productivity for Modern Construction:

The GF20 is designed to meet the demands of high-volume reinforcement processing. With a bending speed of up to 25–30 cycles per minute and production capacity reaching approximately 500 stirrups per hour, the machine helps contractors complete projects faster while maintaining consistent quality.

The automatic reversing mechanism reduces operator fatigue and allows continuous production with minimal downtime.

Specification	Details
Model	GF20
Machine Type	Automatic Stirrup Bending Machine
Rebar Capacity	4–20mm
Motor Power	2.2kW / 3kW
Motor Speed	1440 RPM
Bending Speed	25–30 Times/Minute
Angle Range	0°–360°
Operation	Foot Pedal Controlled
Power Options	Single Phase / Three Phase
Function	Stirrup & Ring Making

Rebar Diameter	Simultaneous Bending
20mm	1 Bar
18mm	1 Bar
16mm	1 Bar
14mm	2 Bars
12mm	3 Bars
10mm	4 Bars
8mm	5 Bars
6mm	6 Bars

Why Buy from Spartech?

At Spartech, we focus on delivering reliable construction machinery backed by technical expertise, service support, and quality assurance. Every machine is selected to provide high productivity, operational reliability, and long-term performance for construction professionals across India.

Frequently Asked Questions

The Spartech Ring Making Machine (GF20/SP) is designed for manufacturing stirrups, rings, square ties, rectangular ties, and other reinforcement shapes used in RCC construction. It is ideal for construction sites, fabrication yards, and rebar processing applications.

The GF20/SP is powered by a 2.2 kW Single Phase Electric Motor and operates on a 220V power supply, making it suitable for locations with a standard single-phase electrical connection.

The machine can bend steel bars from 6 mm to 16 mm and produces up to 28 stirrups per minute, delivering high bending accuracy and consistent repeatable results for efficient production.

If you require technical assistance or maintenance, you can raise a service request through the Spartech Store Mobile App or contact the Spartech Customer Support team. Please keep your machine model, serial number, purchase details, and photos or videos of the issue ready to help our service team provide faster support.

To ensure reliable performance and extend the machine's lifespan:

Keep the machine clean after every operation.

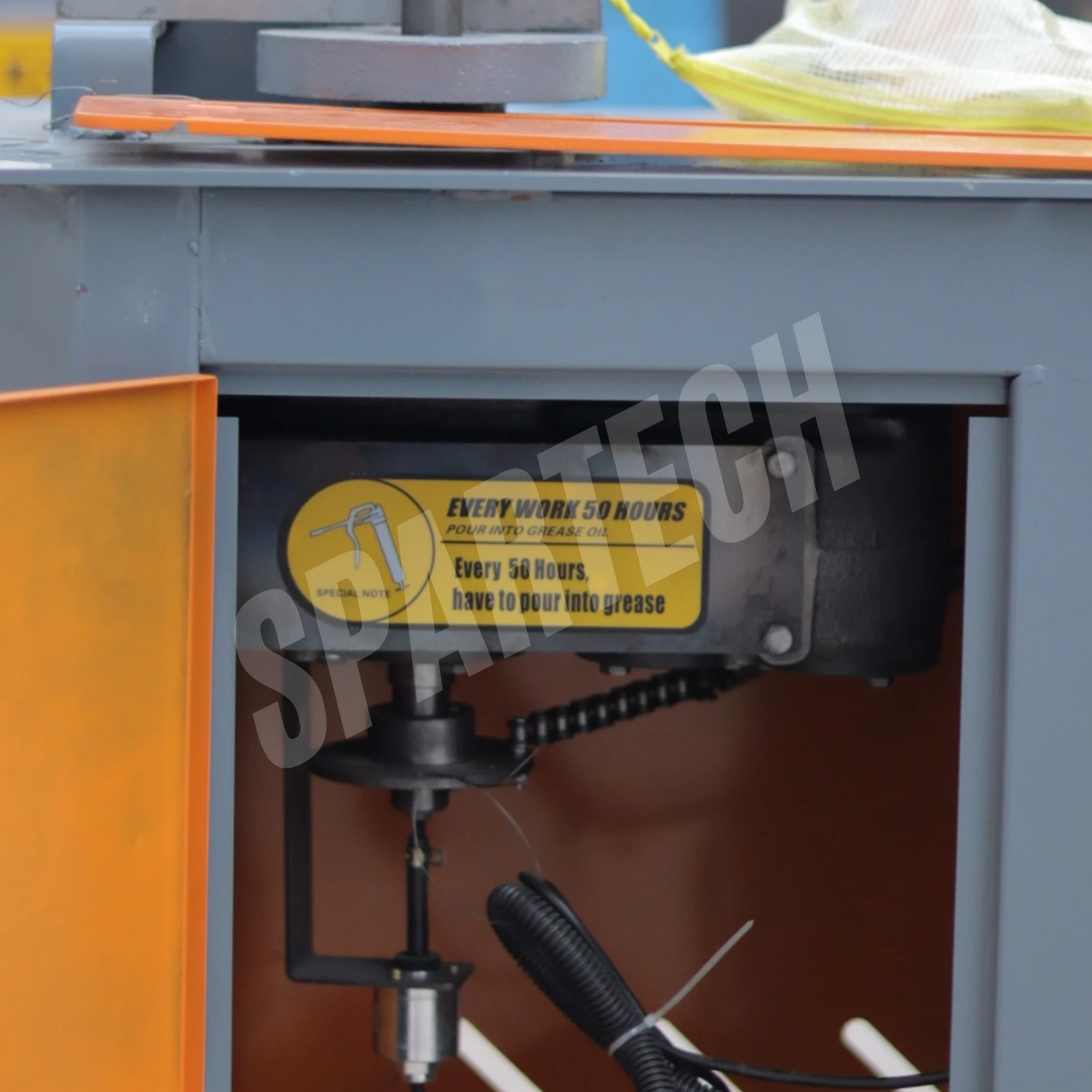

Lubricate moving parts regularly.
Inspect bending pins, rollers, and dies for wear.
Tighten all nuts and bolts periodically.
Check the motor and electrical connections before use.
Operate the machine within its recommended 6–20 mm bending capacity.

Regular maintenance helps maintain bending accuracy, improves productivity, and minimizes unexpected downtime.
